High Accuracy Slot Extrusion Film Coating Machine
Product Detail
This product is used for applied to the surface coating of sheet substrates, which is widely used in various high-temperature film coating research. Such as ceramic films, crystal films, lithium battery electrode and special nano film coating. It adopts the slot extrusion film coating, and this device is mainly composed of slot extrusion die, coating platform, feeding system and control system.
Features
● Adopt large area uniform heating to ensure the temperature control high accuracy of the substrate.
● Flat plate coating, motor driven slot extrusion die coating, with stable and adjustable coating speed.
● Vacuum chuck enable placement or removal of substrates such as copper and aluminum foils.
● Vacuum chuck are available with access to an external vacuum source, enabling the adsorption of substrates without deformation.
● The slot extrusion die is made of high-performance stainless steel, which is adaptable and corrosion-resistant.
● Various thickness types of spacers are available, suitable for different viscosity liquids.
● Integrated automatic feeding system to realize the linkage between functions.
● High precision injection pump, which can fill material at low flow rate to meet the user's requirements for low flow rate filling.
● PLC large size touch screen control, easy to set parameters.
Technical Parameters
|
Model
|
STC-TMJ-300SA
|
|
Voltage
|
AC220V±10%, 50Hz
|
|
Power
|
2.5KW
|
|
Effective coating area
|
L300mm * W200mm
|
|
Coating speed
|
0~120mm/s adjustable (such as lithium iron phosphate slurry)
|
|
Coating thickness
|
0~5mm, adjustable by micrometer
|
|
Coating thickness after drying
|
10~250μm
|
|
Coating accuracy
|
±3μm (1μm micrometer is available)
|
|
Heating temperature
|
RT~150℃, digital temperature controller, accuracy±2℃
|
|
Feeding method
|
High-precision syringe pump (the capacity is optional)
|
|
Vacuum chuck
|
L385 * W300 * H29mm, Aluminum flat chuck with vacuum
|
|
Coating method
|
Slot extrusion film coating
|
|
Coating drive
|
Serve motor drive
|
|
Oil-free vacuum pump
|
External vacuum pump
|
|
Dimension
|
L1000 * W600 * H710mm
|
|
Weight
|
110kg
|
Warranty
1 year warranty with lifetime support.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|

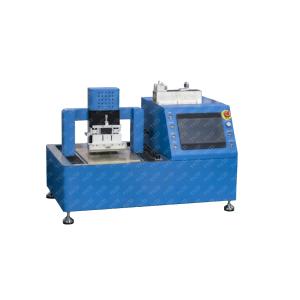

High Accuracy Slot Extrusion Film Coating Machine Images
|
